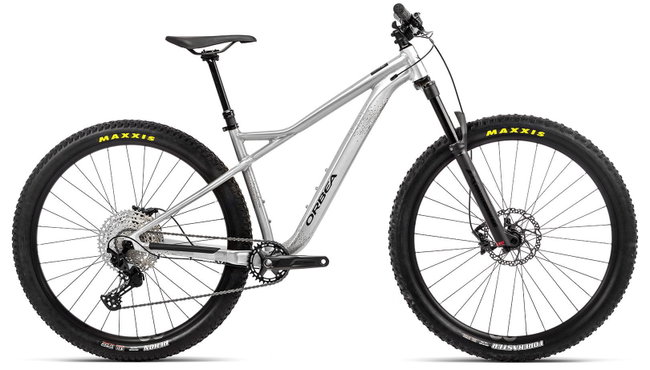

Orbea LAUFEY H10 2022 - bicicleta MTB hardtail Trail 29" - argintiu Raw Aluminum
Descriere
MASTER OF FUN
Riding a hardtail is a choice, not a compromise, and if you choose Laufey, you are choosing to squeeze every last drop of fun from every ride. You are here for a good time and Laufey is ready thanks to the low-slung, slack geometry, big fork, and that magic feel which comes from the clever frame design absorbing trail buzz and taking the sting out of bigger impacts.
THAT MAGIC FEEL
Designing a little bit of compliance into a frame adds comfort and also helps the bike track the ground better, especially at speed. Laufey's magic handling and composure when things get gnarly comes from that tuned rigidity and every tube has been carefully designed to offer the most fun, responsive ride possible.
These are details you only notice when you push that little bit too hard and wonder how you got away with it!
- POWERSPINE
- VERTICAL
- COMPLIANCE
- VIBRATION ABSORPTION
BUILT TO SHRED WITH A MIXTURE OF PRECISION, ACCURACY AND ABSORPTION
However precision and accuracy need stiffness and absorption needs compliance, so how do we do it? The frame from the headtube to the bottom bracket is stiffer, adding precision, accuracy and pedalling efficiency where it is needed.
THAT GIVES US FREEDOM TO DESIGN THE REAR TRIANGLE AND TOPTUBE TO MAXIMIZE VERTICAL COMPLIANCE.
You see this design right away when you look at Laufey and it is what brings that magic feel.
TUNED STIFFNESS
Studying the way a frame behaves at speed on a rough trail is critical to designing a bike like Laufey. The downtube and headtube areas are stiff, offering precision and great pedalling, however by very carefully adding some controlled flex into the toptube and seat stays we can help reduce unwanted vibrations and lessen the effects of impacts.
This smoothness can be tested in the laboratory, but more importantly it can be felt on the trails. During the development of Laufey we used a combination of computer modelling, laboratory testing and pure, outright shredding on the trails, to guide us to the sweet spot.

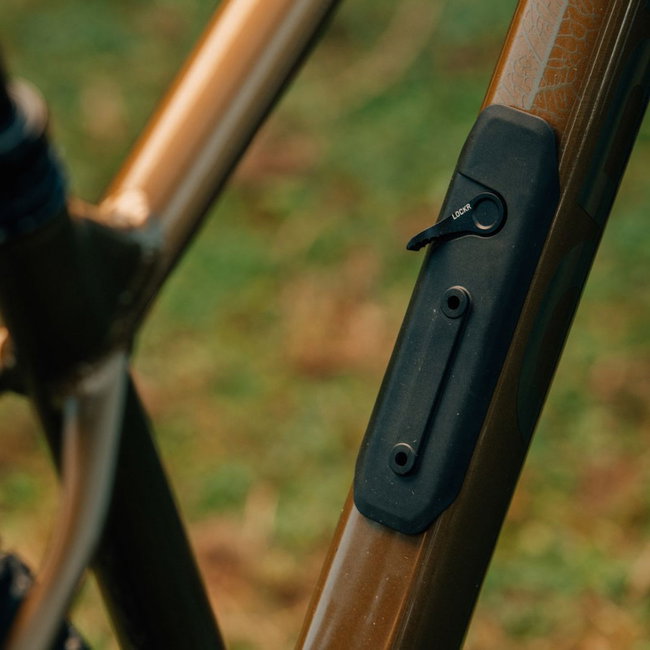

LOCKR: EVERYTHING YOU NEED, RIGHT AT HAND

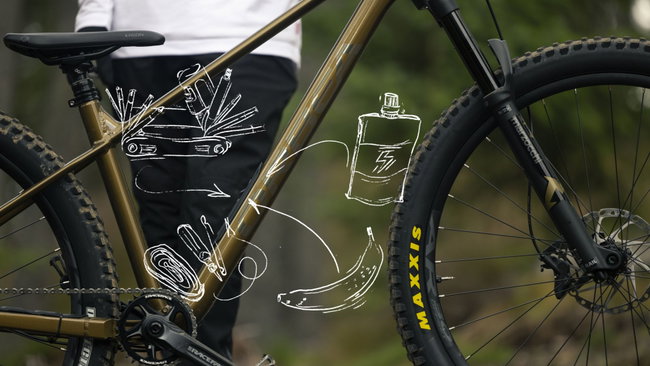

When it is time to shred Laufey is ready. Lockr is our downtube cargo bay, with the new OC bag and enough space for all the essential tools and whatever you need for short rides or longer days.
READY TO ROCK GEOMETRY
Take a slack, low slung frame. Add Steep and Deep to maximize maneuverability and a big 140mm fork for when things get crazy. Precision shaping of the chainstays to give lots of clearance for grippy 2.6" tires. That is the recipe for fun!
- SLACK AND LOW SLUNG
- STEEP 'N' DEEP
- 140MM FORK
- 2.6" TIRE CLEARANCE
BIG FORKS
The long travel 140mm fork matches Laufey's fun loving nature, letting you push hard even when things get rough.
STEEP 'N' DEEP
Thanks to the uninterrupted, short and straight seat tube Laufey has space for fully inserting long travel dropper posts on all sizes. Drop your saddle right out of the way on the descents, giving more space to more your body and more control. Long travel droppers are the only way!
READY TO ROCK GEOMETRY
Don't feel you have to hold back just because you are on a hardtail, Laufey is ready for any trouble you want to seek out. Laufey's confident geometry lets you have fun on trails where other riders only venture with their fully.
LOW SLUNG
The sloping top tube works with Steep´n´Deep, giving loads of space to maximize Laufey's playfulness.
BURLY TIRE CLEARANCE
Laufey's carefully shaped chainstays offer plenty of clearance for 2.6" tires.
TOUGH. SIMPLE. UNSTOPPABLE
Laufey is a bombproof hardtail, built to survive abuse. The factory fitted vinyl protects the downtube from the inevitable rock strikes and the internal cables are protected and hidden.
ADVANCED ALLOY FRAME
FACTORY FITTED PROTECTION
INTERNAL CABLES
ALWAYS READY NO MATTER WHAT TRAILS
Whether you are riding XC, or hitting the local jump trail, Laufey is ready. Put on XC tires, or choose more aggressive rubber. The Trail Geometry is built for shredding but that also means that it is confidence-inspiring for newer riders.
REGISTER FOR YOUR WARRANTY AND BENEFITS
LIFETIME WARRANTY
We offer a lifetime warranty on your bike frame once the legal warranty period has expired.
ACCIDENT POLICY
If your bike cracks or breaks due to external factors, we’ll provide you with a discount for a similar new frame.
Components
FRAMESET
FRAME
Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05
Fork
Marzocchi Bomber Z2 140 QR15x110
Direction
FSA 1-1/8 - 1-1/2" Integrated
Drivetrain
Crankset
Shimano MT511 32t
Shifters
Shimano Deore M6100 I-Spec EV
Cassette
Shimano CS-M6100 10-51t 12-Speed
Rear derailleur
Shimano SLX M7100 SGS Shadow Plus
Chain
Shimano M6100
Cockpit
Handlebar
Alloy, 35mm, Rise 12mm, 780mm
Stem
Alloy 3D forged, 35mm interface, -7º
Brakes
Brakes
Shimano M6100 Hydraulic Disc
Brakes Configuration
Wheels
Wheels
Alloy, Tubeless, 29", 29c, 32H
Tyres
Maxxis Forekaster 2.60" FB 60 TPI Dual Exo TR
Tyres
Maxxis Rekon 2.60" FB 60 TPI Dual Exo TR
Components
Seatpost
OC Mountain Control MC20, 31.6mm, Dropper
Seatpost Lever
Shimano SL-MT500 I-Spec EV
Saddle
Selle Royal 2058 DRN
Grips
OC Lock On
Geometry
Size chart
Caracteristici
- 2022
- S
- Aluminiu
