RIDING WITHIN REACH

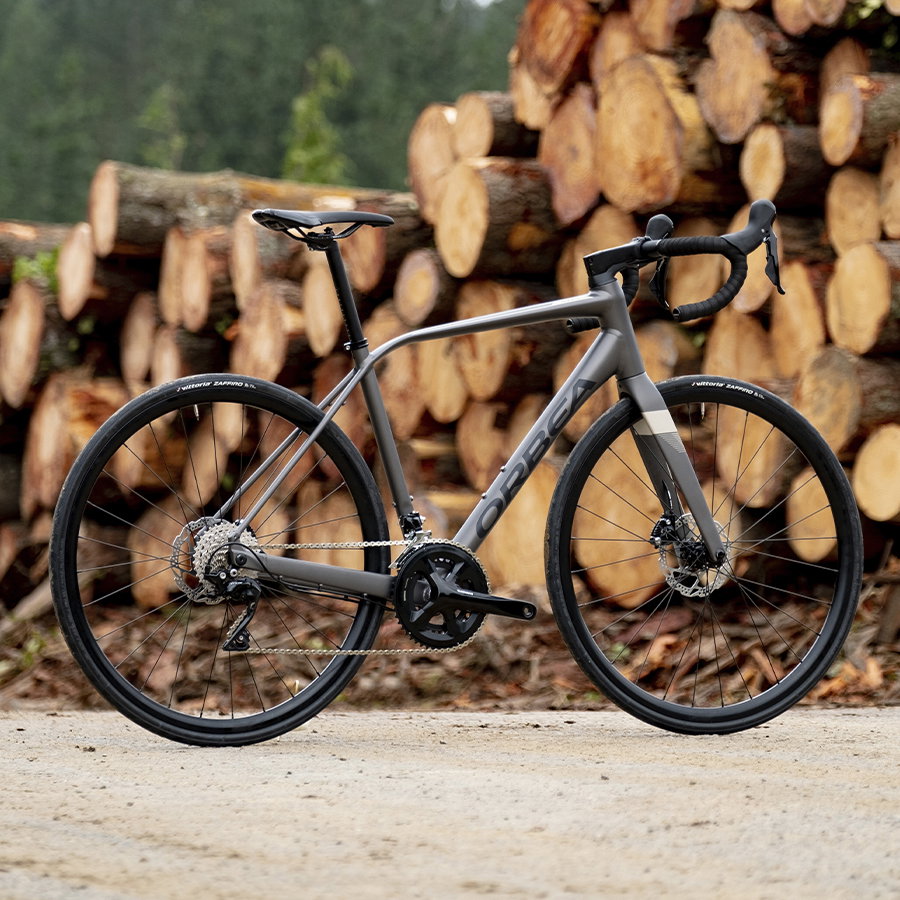

Grab your Avant and fill your bottles before rolling out on your afternoon ride. No other machine can better help you enjoy the exhilaration of road cycling. The speed, freedom and the views offered by quiet roads are all included free with every Avant - and you love it.

AVANT CARBON FORK

The carbon layup and shaping of the Avant fork offers the best combination of elasticity, tire clearance and torsional stiffness. The fork legs sport integrated fender mounts and ample tire clearance for even more versatility.

HIGH POLISH

The new Avant receives the same level of design attention as our carbon frames - The tubes are butted and hydroformed with smooth, polished welds to match the dramatic look of the monocoque frame.

ICR PLUS

Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.

GEOMETRY AND SIZE CHART

COMPONENTS

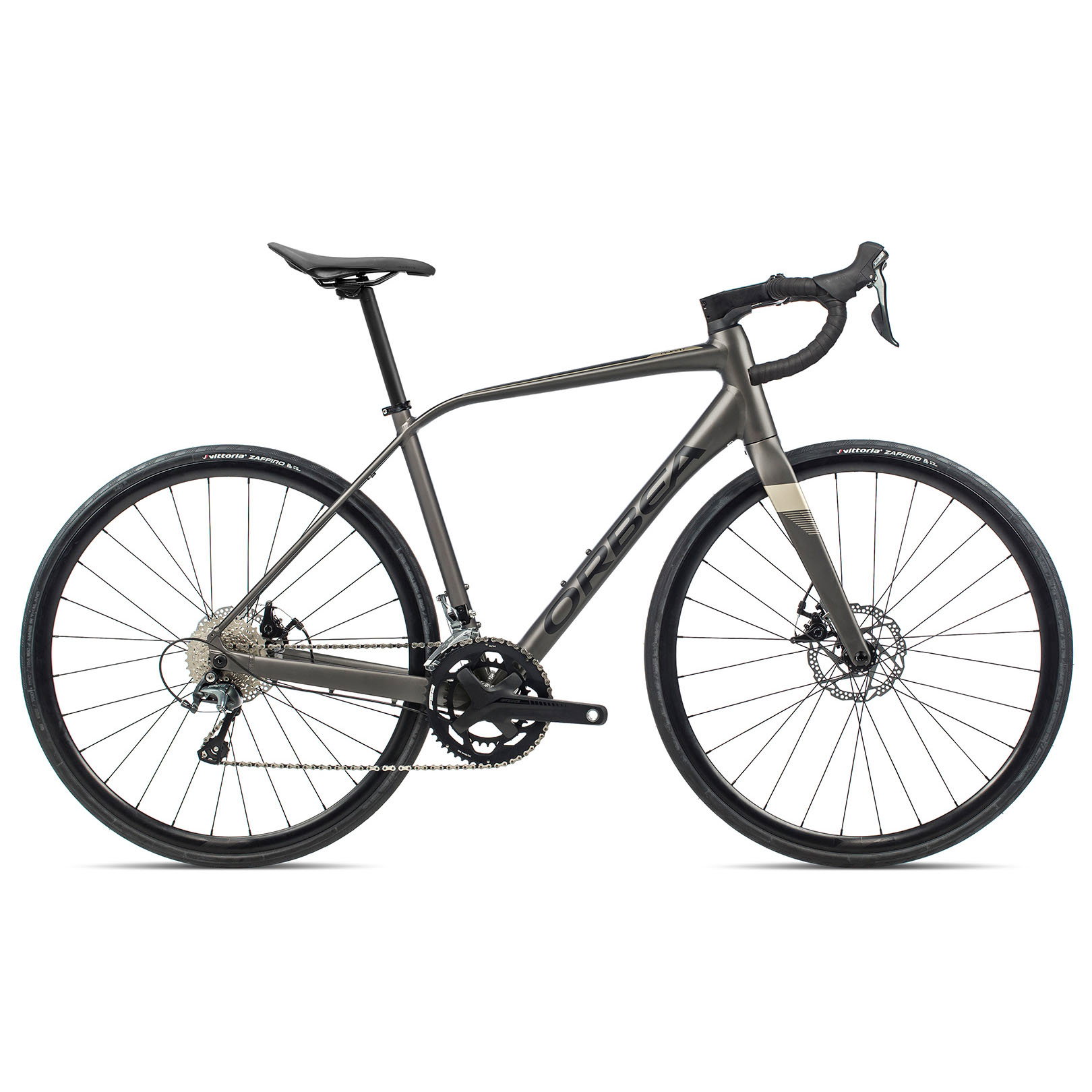

• FRAME Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
• FORK Orbea carbon fork 2021, aluminum steerer, 1-1/8" head tube
• CRANKSET FSA Omega Megaexo 34x50t
• HEADSET Acros Alloy 1-1/2" Internal Cable Routing
• HANDLEBAR OC RP30-R Road Performance Riser, Reach 70, Drop 125, Rise 15, w/Di2 hole
• STEM OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface
• SHIFTERS Shimano Tiagra ST-4700
• BRAKES Tektro MD-C550 Mechanical Disc

  Consult other components
• CASSETTE Sun Race CSMS1 11-34t 10-Speed
• REAR DERAILLEUR Shimano Tiagra 4700 GS
• FRONT DERAILLEUR Shimano Tiagra 4700
• CHAIN KMC X10
• WHEELS Orbea wheel: Corsa with 12mm E-Thru hubset Shimano RS470 28H
• TYRES Vittoria Zafiro V Rigid bead 700x28c
• SEATPOST Alloy 27.2 Offset 20
• SADDLE Fizik Aliante R5
• MUDGUARD

  Consult other components
• HANDLEBAR PLUGS Orbea Eva
• FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Solid
• REAR WHEEL AXLE Orbea Thru Axle 12x142mm M12x2 P1 Solid
